The Best Do-It-Yourself Motorcycle Helmet Cam


Dobro Došli "WildManGulice" Members!  We Love Serbia!

While riding through Asia, I built my own "helmet cam" mount for under $10 using some simple things you can find in any hardware store and PC shop. This helmet cam takes about 15 min. to make and works great. Here is a video I made using this mount:

What you need:

  • A cheap, $5 webcam tripod mount like this one. Make sure it is made from plastic and has a metal standard screw mount for digital/film cameras.
  • 2-Part epoxy glue. Get it at any hardware shop. Should be rated to bond plastics.
  • Some coarse-grit sandpaper or a grinder.
  • A plastic motorcycle helmet that you don't mind permanently altering. (no leather helmets.)
  • A soft rubber washer (optional)

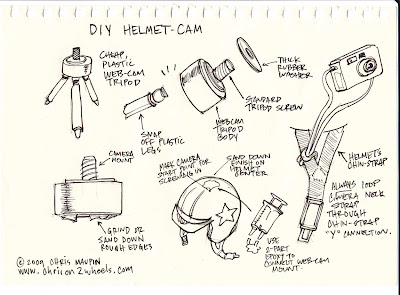

How to build it:

  1. Snap the plastic legs off the tripod. Grind down the bottom until it is flat and smooth.
  2. Use a piece of string to find the center of your helmet - this should be directly over the crown of your head.
  3. IMPORTANT: Once you've found the center, mark a space that is about 5-10 degrees back from the center point. When you ride, you will keep your face down. If you mount the camera to the center point, then your camera will always be looking down too. Moving the mounting spot back a few degrees will give you much better videos.
  4. Sand down the area on the helmet you want to mount the camera to. It should be at least as big as the base of the webcam mount.
  5. Use the two-part epoxy mix to attach the camera mount to the sanded spot on the helmet. TIP: If the webcam mount has an adjustment for angle, you may want to epoxy this as well so it doesn't come loose while you are riding.
  6. Let the mount cure overnight. The next day, twist your camera onto the screw mount sticking up out of the helmet. You will need to do this several times to find the perfect spot to 'start' twisting the camera. Once you find the best spot, mark it with a marker so you can find it easy the next time. TIP: Adding a soft rubber washer to the mount can make this easier- it will give you some room to 'nudge' the camera into place to get the perfect angle.
  7. IMPORTANT: Always loop the camera's neck strap through the helmet's chin-strap when riding. If the mount breaks off while riding, your camera will be caught by your chin strap and won't fall onto the road.
  8. Set your camera to "Video" and you are ready to go!
